Copying & Cloning Services For

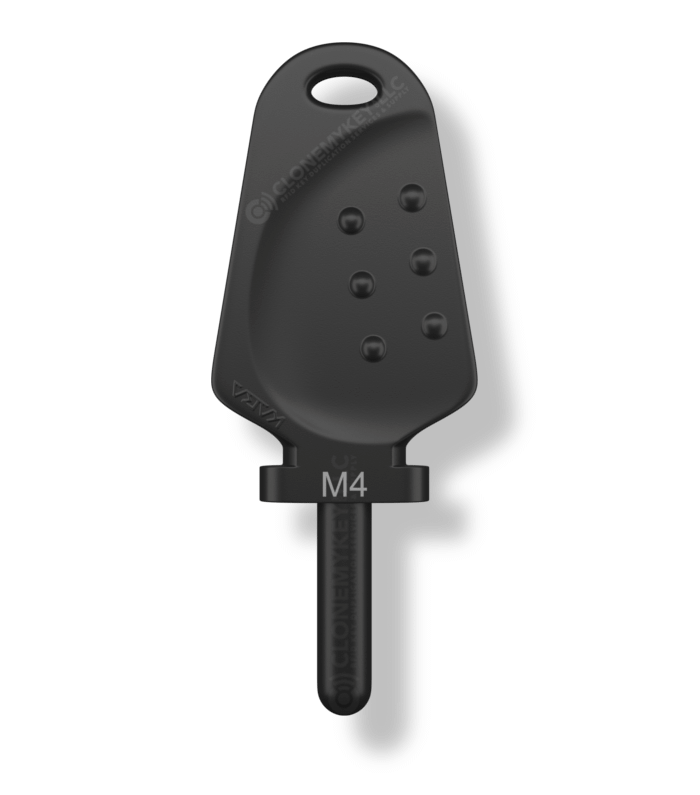

Saflok® InSync (M4)

Uniquely designed to mimic a traditional metal key, the InSync series features a dual chip design that allows customers to easily transition off legacy technology at a more cost effective pace.

The M4 series has an embedded high security RFID chip which allows users to use the key on existing RFID based systems. Generally, this chip is reserved for common door, gate, and elevator access. The high security Hitag S chip is typically only used on private/residence doors.

Copying Options

Technical Specs

Not Your Key?

Cloning & Copying Options

Kaba® Insync M4-Series Details

Manufacture: Kaba® Access & Data Systems
Alternative Names: W30009, RFIDKEY-M4, SAM-RFID-KEY, KBIS-W30009
Format Names: Mifare® Classic® 4K, Hitag S
Technology: Radio Frequency Identification (RFID) using low and high frequency data transfer
Key TypeMulti-Technology “dual-chip” Key Fob
Dimensions: #
Weight: #
Material: ABS Plastic

Mifare® Classic® 4K Antenna Size: Unknown
Mifare® Classic® 4K Antenna Geometry: Unknown
Mifare® Classic® 4K ModulationISO/IEC 14443 Type A
Mifare® Classic® 4K InterfaceISO/IEC 14443 Type A
Mifare® Classic® 4K Typical Range: Less than 6 inches
Mifare® Classic® 4K Bit Length: N/A
Mifare® Classic® 4K Possible Combinations: N/A
Mifare® Classic® 4K Facility Code Range: N/A
Mifare® Classic® 4K Storage Capacity4K (4096 bytes) divided into 40 sectors
Mifare® Classic® 4K EncryptionAES/3DES (up to 80 unique encryption keys)
Mifare® Classic® 4K Security: High Security (Class J)

Hitage S Antenna Size: Unknown
Hitage S Antenna Geometry: Unknown
Hitage S Modulation: Amplitude-shift keying (ASK) with Manchester and bi-phase coding
Hitage S Interface: ISO 11784/85, ISO 14223, ISO 18000-2
Hitage S Typical Range: Contact Required
Hitage S Bit Length: N/A
Hitage S Possible Combinations: Unknown
Hitage S Facility Code Range: N/A
Hitage S Storage Capacity: 256 or 2048 bit
Hitage S Encryption: 48 bit secret key authentication
Hitage S Security: High Security (Class H)

*Snap N’ Send service requires pre-approval through web-based application. Once approved, customers will be provided access to complete the checkout process.

Due to forgeries, non-production models & other unforeseen factors there is always a small possibility that a key may not be duplicatable. All success rate percentages displayed are the result of data collected from the previous 12 months of operation to the end of the last completed calendar month.

All trademarks and registered trademarks are the property of their respective owners.®, LLC has no affiliation with manufactures of formats and brands listed above.
